The Perfect Addition To All Your Shops

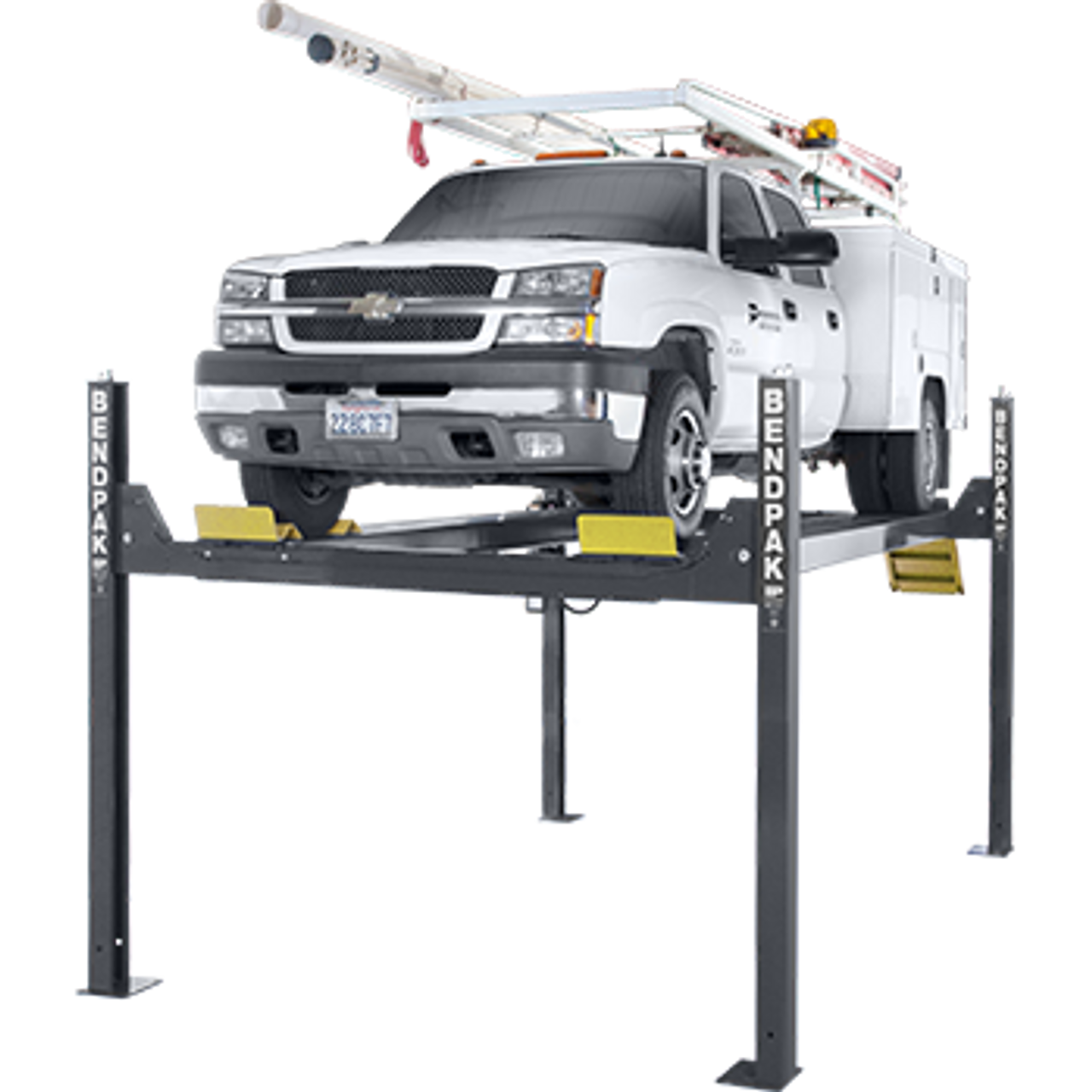

The industrial-quality HD-14T is a high lift solution that provides 82” of rise – that’s more headroom under and around the lift work area for tall technicians looking to reduce painful head knocks. Not only is the HD-14T great for service work, it doubles as a high-clearance parking solution as well when you need store vehicles underneath. It’s just another way that BendPak tailors our lifts to suit your needs. With this four-post lift, you can push 14,000 pounds worth of rolling stock into the air without breaking a sweat. Be sure to consider BendPak’s RJ-7 air-hydraulic bridge jacks and our convenient rolling oil drain pan to increase the service capability even more.
BendPak’s HD-Series 4-post lifts are engineered to meet the strenuous demands of even your toughest professional lifting jobs. In particular, this HD-14T is the kind of sturdy beast you want as the backbone of your shop or garage. Designed into every HD-Series lift is a laundry list of key features as long as your arm to ensure that BendPak is the absolute best you can buy. Our competitors might say we overdo it, but we don’t include components for the sake of frills and flash. We design our lifts with the attributes we feel should come standard with every lift—the kind of lift we would want to (and do) own. You can always count on BendPak lifts for increased durability, safety and productivity. Spend less time worrying about what you’re working under and more time doing what you love. Our commercial-grade lifts are second to none and recognized the world-over as benchmarks of dependability and quality. Heck, it’s how we got our slogan.
The HD-14T is the extra-tall model in the HD-14 series, meaning that it gives you an extra foot of lifting height over its shorter brethren. If you are looking for the same great lifting power but with a shorter lifting height and variable ramp sizes, consider the HDS-14 or the HDS-14X.
Dependable design
Four heavy-duty, high-quality, stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway makes this lift the most durable, maintenance-free lifting system on the market.
Dual-hub cable sheaves
Reduce stress and fatigue on the axles, sheaves and cables. We insist on using dual-hub cable sheaves, even if they cost us more to make. When you buy BendPak, we throw in peace of mind as a free gift.
Multi-level locking positions
The HD-14T is equipped with multiple adjustable height locking positions for variable-height parking. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.
Heavy-duty aircraft cable
Each lift is supplied with four high-quality stainless steel lifting cables, rated at 14,400 lbs. each. The combined rating of these cables is more than 411% of the maximum lifting capacity of the entire lift! And we make sure it looks tidy too—all lifting cables are fully enclosed within the lift structure itself.
Electric / hydraulic power system
We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach.
Single hydraulic cylinder
Each lift is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum reliable performance. Our industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001” diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage is a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time. An integrated flow restrictor provides a controlled descent in the case of an unexpected hose rupture.
Durable powder-coat finish
All HD-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25’ long. Once cleaned, they’re immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged, are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder “sticks” to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes.
Non-skid runways
Gives you maximum grip, even when the runway surface is wet or oily.
Integrated design
Lifting cables, airlines, safety latches and sheaves are all fully enclosed.
Longer approach ramps
These approach ramps were designed a little longer to help when loading low ground clearance vehicles. It’s the little bit that makes a big difference.
Automatic safety locks
Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
Lifting Capacity
14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle
7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle
7,000 lbs. (3,175 kg)
A – Min. Runway Height
7.625″ (194 mm)
B – Max. Rise
82″ (2,083 mm)
C – Max. Lifting Height
86.5″ (2,197 mm)
D – Overall Width
126″ (3,200 mm)
E – Outside Length
205″ (5,207 mm)
F – Overall Length
234″ (5,944 mm)
G – Height of Columns
101″ (2,565 mm)
H – Width Between Columns
115.5″ (2,934 mm)
I – Drive-Thru Clearance
98″ (2,489 mm)
J – Runway Width
20″ (508 mm)
K – Length of Runways
191″ (4,851 mm)
L – Width Between Runways
37.5″ (953 mm) or 51″ (1,295 mm)
M – Runway Centerline
57.5″ (1,461 mm) or 71″ (1,803 mm)
N – Outside Edge of Runways
77.5″ (1,969 mm) or 91″ (2,311 mm)
Rated Capacity
140″ (3,556 mm)
75% Capacity
120″ (3,048 mm)
50% Capacity
100″ (2,540 mm)
25% Capacity
80″ (2,032 mm)
Locking Positions
16
Lock Spacing
Every 4″ (102 mm)
Motor
220 VAC / 60 Hz / 1 Ph
Noise
45 dB
Shipping Weight
2,450-lbs. (1,111.3 kg)
Shipping Dimensions
200” x 21” x 42” (5,080 mm x 533 mm x 1,066 mm)
Time to Full Rise
65 seconds
