Enjoy Uninterrupted Power During Power Outages
Experience the ultimate peace of mind with the Explorer 5000 Plus. Its substantial capacity keeps your home running smoothly for up to two weeks, ensuring no disruptions to your essential appliances, home office, or even your electric vehicle.
Power All Of Your Appliances, Including Ovens and Air Conditioners
The Explorer 5000 Plus seamlessly powers a wide range of appliances, from high-demand devices like ovens and air conditioners to the necessities of daily life.
Rapid Recharge, Always Ready With Five Versatile Charging Methods
Reclaim power quickly and efficiently with five versatile charging methods, including rapid 1.7-hour charging options. Stay prepared for any power outage with the Explorer 5000 Plus always at the ready.
Experience Intelligent Power Control at Your Fingertips With The Jackery App
Take control of your energy consumption with the intuitive Jackery app. Monitor usage, schedule charging/discharging cycles, and optimize your power usage for maximum efficiency and convenience.
Whisper Quiet and Built to Last 10+ Years
Engineered with advanced LiFePO4 batteries for over 10 years of reliable service, the Explorer 5000 Plus offers long-lasting peace of mind. Its quiet operation and compact design ensure a seamless and unobtrusive integration into your home.
Jackery Explorer 5000 Plus Warranty
Jackery provides a 5-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.

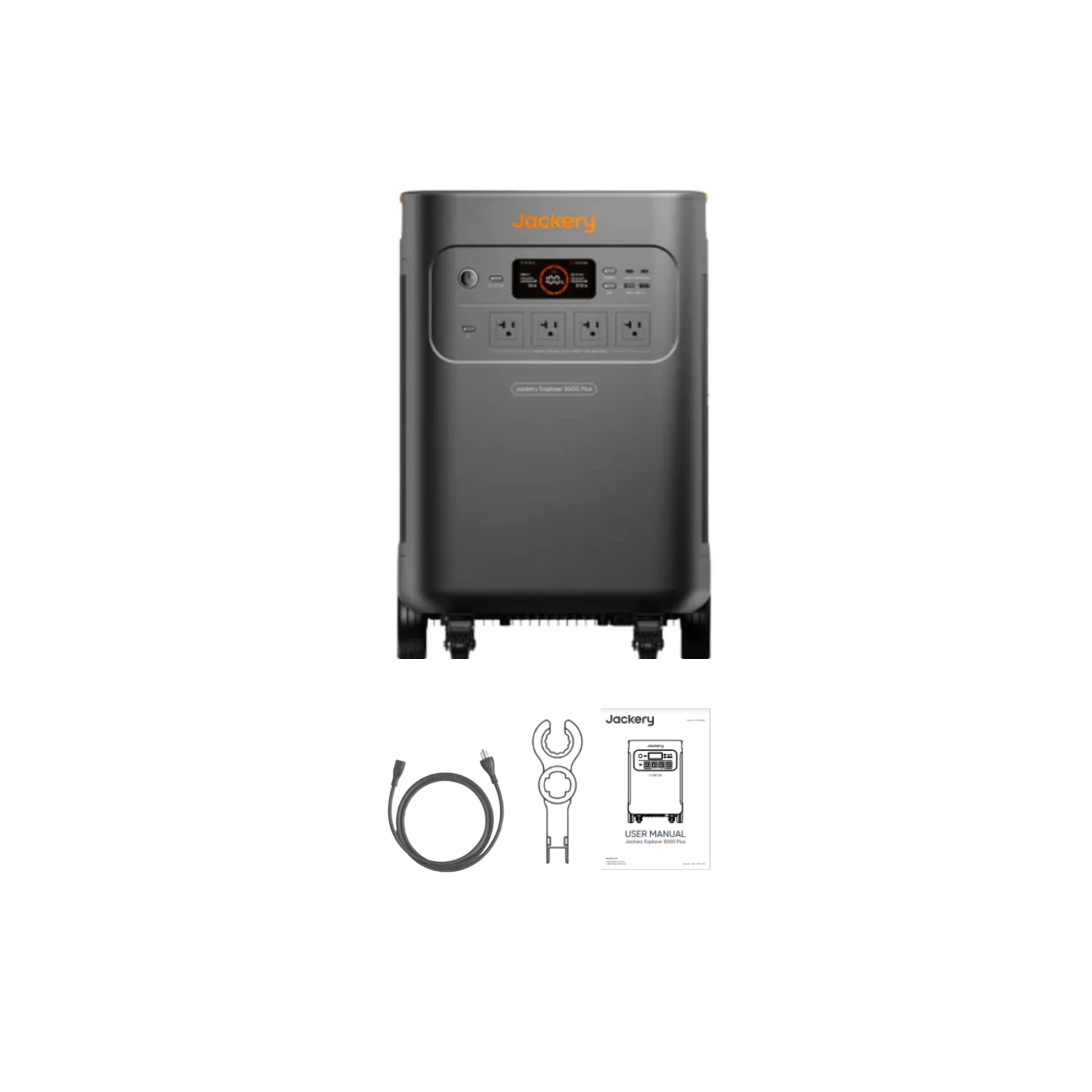

What’s Included
1 x Jackery Explorer 5000 Plus Whole-Home Backup
1 x AC Charging Cable
1 x MC4 Wrench
1 x User Manual
Jackery Explorer 5000 Plus Specifications
Battery Specifications
Capacity
5040Wh | 45Ah/112V DC
Cell Chemistry
LiFePO4
Cycle Life
4000 cycles to 70%+ capacity
Ports
AC Output
(NEMA L14-30R/14-50) 120V/240V~60Hz, 30A, 7200W Max
AC Total Output
7200W Max, 14400W Surge
AC Output (x4)
120V, 20A, 2400W
USB-A Output (x2)
18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
USB-C Output (x2)
100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
Cigarette Lighter Port
12V⎓10A
AC Expansion Port (Output)
240V~60Hz, 30A, 7200W
DC Expansion Port (Output)
80.5V-126V⎓41A Max
Charge Mode AC Input
120V~60Hz, 15A Max
Bypass Mode AC Input/Output
120V, 12A Max; 240V, 16.7A Max
AC Expansion Port (Input)
240V~60Hz, 16.7A Max
DC Expansion Port (Input)
80.5V-126V⎓98A Max
High-PV
135V-450V⎓15A Max
Low-PV
2 x DC 8mm Ports; 16V-60V⎓10.5A Max
Double to 21A/1200W Max 11V-16V (Working Voltage)⎓8A Max, Double to 8A Max
General Specifications
Weight
134.5 lbs | 61 kg
Height
16.5 in | 41.8 cm
Width
15.5 in | 39.5 cm
Length
25 in | 63.5 cm
Warranty
5 Years
Charge Temperature
0°C~45°C | 32°F~113°F
Discharge Temperature
-15°C~45°C | 5°F~113°F
UPS
Backup UPS: ＜20ms, Online UPS: 0ms
Inverter Topology
Non-isolated
Power Factor
≥0.98
Entire Unit
Type 1
Jackery Smart Transfer Switch Specifications
AC Voltage (Nominal)
120V/240V~ 60Hz
Feed-In Type
Split Phase
Maximum Input Current
100A Grid / 60A Power Station
Maximum Output Current
60A Home Load / 33.4A Power Station
Maximum Input Short-Circuit Current
10KA
Overvoltage Category
IV
UPS
≤20ms
Enclosure Type (Distribution Panel)
NEMA Type 1
Number of Load Branches
12
Main Circuit
2 AWG
Branch Circuit
14 AWG, 12 AWG, 10 AWG
Communication
Wi-Fi and Bluetooth
Operating Temperature
-4°F~113°F (-20°C~45°C)
Dimensions
22 x 14.7 x 7.87 in (56 x 37.4 x 20 cm)
Weight
25.57 lbs | 11.6 kg
Frequently-Asked Questions
1. Solar Panel Compatibility
Is the E5000 Plus compatible with all Jackery Solar Panels?
Yes, the E5000 Plus is compatible with all currently available Jackery solar panels. Older 60W/100W/200W panels may require a 7909-to-8082 adapter.
2. Parallel Operation
Can the E5000 Plus be used in parallel with other Jackery power stations (E2000 Plus, E1000 Plus, etc.)?
No, these products have different voltage, current, and power specifications, preventing parallel operation.
3. Fire Resistance
Is the E5000 Plus fireproof?
The E5000 Plus uses 94V-0 fire-resistant materials, meeting the highest safety standards set by the American UL.
4. Charging Devices Directly
Can the E5000 Plus Battery Pack charge devices independently?
No, the Battery Pack must be connected to the E5000 Plus power station to charge.
5. Home Circuit Integration & UPS
Can the E5000 Plus be integrated into my home circuit system as a UPS?
Yes, the E5000 Plus can be connected to your home circuit system (via TS/Inlet box/TST).
Direct Connection: When connected directly to home circuits with “Online UPS” mode enabled in the app, the E5000 Plus will automatically power on during outages.
Transfer Swift Connection: If connected through a Transfer Swift, the power outage response time will be 20 milliseconds.
6. Outdoor Solar Panel Use
Can I use the E5000 Plus with outdoor solar panels while the main unit stays indoors?
Yes, you can use the Jackery 5M DC extension cable for longer connections, but extended lengths may reduce solar charging efficiency.
7. Smart Switch Installation Cost
How much does it cost to install the smart switch?
The typical cost is $1500-$2000 USD, but it varies based on location and home conditions. Consult with a certified installer or local electrician for a precise quote.
8. Compatibility with Other Jackery Models
Is the 5000 Plus compatible with the 2000 Plus and similar models?
Yes, the 5000 Plus and 2000 Plus can charge each other by connecting each unit’s AC input to the other’s AC output.
9. Smart Switch and Multiple 5000 Plus Units
Can the smart transfer switch support more than one 5000 Plus unit?
Yes, the Jackery Smart Transfer Switch can connect two 5000 Plus units in parallel for increased power capacity and system redundancy.
10. Expandability
Is the 5000 Plus expandable?
Yes, the 5000 Plus is expandable.
Initial Capacity: 5kWh
One Battery Pack: 10kWh
Maximum with Battery Packs: 30kWh (with one 5000 Plus unit)
Maximum with two 5000 Plus units and 10 Battery Packs: 60kWh
11. Parallel Operation with Other Products
Can the E5000 Plus be used in parallel with other Jackery or third-party products?
The E5000 Plus supports parallel operation with another E5000 Plus unit using the STS. It does not support parallel operation with other Jackery power stations or products from other brands.
