Brand
Jet
Color
White
Blade Material
High Speed Steel
Surface Recommendation
Wood
Power Source
Corded Electric
About this item
6-inch resaw capacity for cutting larger pieces of wood
Upper and lower cast iron frame for increased strength and rigidity
Blade guide post with rack and pinion adjustment
Upper and lower ball bearing guides reduce friction for longer blade life
Single knob tracking adjustment simplifies the blade tracking process
Micro-adjustable lower blade guide reduces set up time and makes adjustments easier
Six-spoke, precision computer-balanced wheels eliminate vibration for accurate blade tracking
Technical Details
Brand
Jet
Color
White
Blade Material
High Speed Steel
Surface Recommendation
Wood
Power Source
Corded Electric
Special Feature
Computer-Balanced Wheels, Micro-Adjustable Blade Guides
Included Components
Closed stand with motor, Pulley cover, V-belt, Saw body, Table, Table lock knobs (x2), Table pin, Trunnion support bracket, Fastener package, Blade (3/8”, 6 TPI)
Product Dimensions
26″L x 19″W x 68″H
Voltage
115 Volts
Warranty Type
Limited
Speed
3000 FPM
Blade Length
93.5 Inches
Number of Teeth
24
Cutting Angle
45 Degrees
Current Rating
10 Amps
Wattage
1E+3
Blade Shape
Rectangular
Global Trade Identification Number
00662755123290
UPC
662755123290
Manufacturer
JET
Part Number
708115K
Item Weight
117.8 pounds
Item model number
JWBS-14CS
Is Discontinued By Manufacturer
No
Size
L
Style
Woodworking Bandsaw with Graphite Guide Block
Material
Cast Iron, Steel
Horsepower
1
Item Package Quantity
1
Special Features
Computer-Balanced Wheels, Micro-Adjustable Blade Guides
Batteries Included?
No
Batteries Required?
No
Warranty Description
5-Year Warranty (if used for commercial or industrial purposes then defaults to a 2-Year Warranty)
Product Description
We see a future built on great brands, products, and people. In every facet of our business, we leverage the strengths of our global infrastructure to maximize the benefits of all three.
Amazon.com

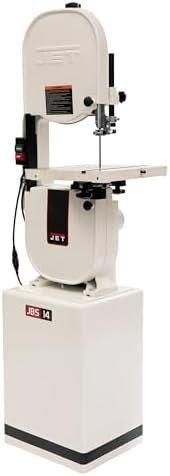

With its simple, straightforward design and powerful features, the JET 708115K JWBS-14CS 14-Inch 1 HP Woodworking Bandsaw with Graphite Guide Blocks is ideal for home shop use by serious hobbyists or craftspeople. This handy tool includes a fully enclosed stand and dust chute, requires minimal set-up time out of the box, and provides years of solid, heavy-duty use.
Large Tilting Table and High Resaw Capacity for Flexibility
The JWBS-14CS gives you plenty of space and the necessary capacity to take on a range of projects. It offers a six-inch depth resaw capacity for cutting larger pieces of wood, 6 x 13-1/2-inch cutting capacity, and a generously sized, 15 x 15-inch offset cast-iron table for more work area in front of the blade. The table also tilts 45 degrees to the right and 10 degrees to the left to accommodate a range of materials and jobs.Cast-Iron Frame and Balanced Wheels for Vibration-Free Operation
Boasting cast-iron frame construction for strength and rigidity, as well as reduced vibration, the JWBS-14CS provides smooth operation for optimum control and consistent results. Precision computer balanced wheels also spin without vibration, ensuring accurate blade tracking.
Heat- and Friction-Reducing Blades for Longer Tool Life
Designed to stand up to years of heavy use, the JWBS-14CS features a micro-adjustable lower blade guide to reduce friction for longer blade life, as well as graphite-impregnated polymer blade guides with roller bearing thrust guides for both quicker set-up and a cooler running blade. By reducing heat, these guides help prevent damage and wear and tear that can compromise the resiliency of the machine.
Durable Metal Housing and Quick-Connect Plug for Durability and Ease-of-Use
The JWBS-14CS boasts heavy-gauge metal housing and a powder coating (rather than paint), which helps the saw hold up to frequent use without chipping or flaking. Another helpful feature is the quick-connect electrical plug, so you don’t have to follow long cords to their outlets before each blade change.
Powerful 1 HP Motor for Fast Results
The JWBS-14CS owes its robust performance to a 1 HP engine that moves the blade at a speedy 3,000 strokes per minute for fast, efficient results. And thanks to the included 3/8-inch, 6.0 TPI woodworking blade, you can start cutting right out of the box.
Safe, User-Friendly Design
Designed to be as user-friendly as it is powerful, this bandsaw comes complete with a four-inch dust port that allows for direct connection of a dust collection system, which is key to keeping your workspace clear so your visibility isn’t impaired by debris. Additionally, a single knob tracking adjustment simplifies the blade tracking process for safe operation.
The JWBS-14CS measures 26 x 68 x 19 inches (WxHxL), weighs 185 pounds, and is backed by a five-year warranty.
About JET: A History of Sharing New, Feature-Rich Products
Opened in 1958 after the founder of the company, Leslie P. Sussman, took the first Boeing Jet Airplane trip from Seattle, Washington to Japan, JET began as a small dealer that sold air hoists and trolleys out of a single hardware store in Seattle. Over the years, JET has carried everything from snowmobiles, transmitter radios, and forklifts to nylon stockings, but by the early 1970s, metalworking had become the base of their business line. And by the 1980s, JET had expanded into the realm of woodworking. Today, you’ll find that JET offers a wide range of popular woodworking tools that are backed with best-in-class features and excellent service.
What’s in the Box
Stand top with motor support plate, four stand legs, two cross braces (short), two cross braces (long), one stand support plate, one saw body, one table, one motor, one V-belt, one pulley cover, two table lock knobs, one table pin, one trunnion support bracket, one fastener package, manual, and warranty card.
From the Manufacturer
Giving you room to maneuver, no matter what the project, this 14-inch band saw has a capacity of 6 by 13-1/2 inches and is packed with well thought-out features: The table tilts 45 degrees to the right and 10 degrees to the left so that you can shift angles and directions easily; a V-groove blade guide ensures consistent and positive alignment, and the graphite-impregnated polymer JET blocks in the blade guides promise quicker setup and a cooler-running blade. The 1 hp, one-phase, 115/230-volt motor can get a 1/8-to-3/4-inch blade moving at 3,000 sfpm. The extra-large 15-by-15-inch cast-iron worktable offsets to provide you with a larger work area in front of the blade. Standard equipment includes the stand, 2-inch dust chute, and a 3/8-inch band saw blade.
FEATURES
Features a rigid one-piece welded stand which requires no assembly
Motor is totally enclosed and fan-cooled for long life
Completely prewired with a unique quick connect motor-to-switch plug for easy setup
Upper blade guide micro-adjustments
“V”-groove blade guide bar for consistent alignment
Graphite impregnated polymer “JET Blocks” in the blade guides for quicker setup and a cooler running blade
Extra large 15″ x 15″ cast iron work table offset for more work area in front of the blade
3/8″ woodworking blade; 6 teeth per inch
Built-in dust chute
A full 6″ under guide cutting capacity with 12-1/2″ blade to frame capacity
STANDARD EQUIPMENT
Stand
2″ dust chute
3/8″ band saw blade
SPECIFICATIONS
Cutting Capacity (H/in): 6
Cutting Capacity (W/in): 13-1/2
Min Saw Blade (W/in): 1/8
Max Saw Blade (W/in): 3/4
Saw Blade (L/in): 93-1/2
Table Size (in): 15 x 15
Table Tilt (R x L): 45 degrees x 10 degrees
Stand Type: Closed
Table Height From Floor (in): 43-1/2
Dust Chute Diameter (OD/in): 2
Overall Dimensions (HxWxD/in): 68 x 26 x 19
Motor (TEFC): 1 HP, 1 Ph, 115/230V, Prewired 115V
Blade Speed (SFPM): 3,000
Net Weight (lbs): 185
