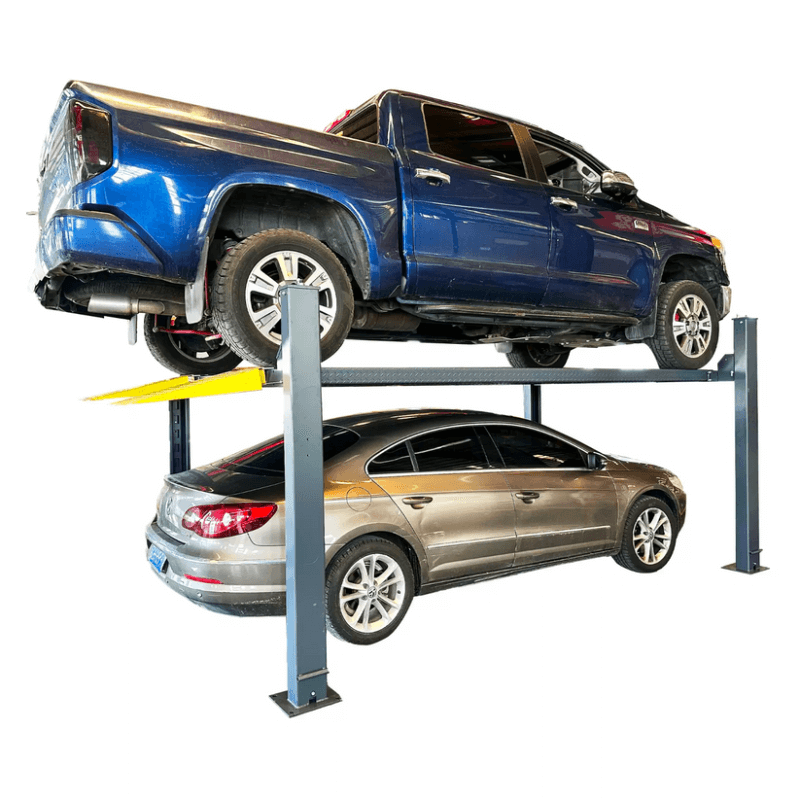

Katool 4H850 Vehicle Storage Lift
Limited garage space and a lack of a suitable lift make car storage and maintenance a constant challenge. The Katool KT-4H850 Parking Lift is your answer to a more organized and efficient garage. Featuring a remarkable 8,500-lb lifting capacity, this lift tackles most cars and even light trucks with ease. The KT-4H850 offers adjustable working heights up to 70.87 inches and a compact design that fits perfectly in virtually any garage.
This lift lets you maximize your limited space as it elevates cars for easy maintenance or storage. The KT-4H850 accommodates various car sizes and offers ample working room with its generous inside column space and low minimum runway height. Convenience? Say no more. It’s built-in with a choice of power options, a caster kit for easy movement, drip trays, and a jack tray. Safety is paramount with CE-approval, multiple locking devices, and a high-quality hydraulic system. Upgrade to the Katool KT-4H850 today and make your garage or workshop reach its potential!
4H850 Specifications:
Lifting Capacity: 8,500 lb
Max Lifting Height: 71″
Height of Posts: 84″
Overall Width: 108″
Length (w/ ramps): 200″
Length (w/o ramps): 172″
Inside Columns: 95″
Inside Runways: 37
Min. Runway Height: 4.76″
Lock Position: Every 4.7″ (12 positions)
Cable Thickness: 3/8″
Power: 110V/60HZ/1PH* or 220V/60HZ/1PH
Shipping Dimensions: 167″ L x 23″ W x 30″ H
Weight: 1,820lbs
Color: Charcoal Grey & Yellow Ramps
Oil: AW-46 or AW-32 (colder climates)
Katool KT 4H850 Special Features:
8500lbs lifting capacity.
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
Single Point Manual Safety Lock Release
Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
Power side column can be installed at both sides, front or rear.
Non-skid diamond platforms and adjustable safety lock ladders.
Comes with a caster kit for moving the lift around.
Comes with two drip trays and a jack tray.
High-quality hydraulic system with 110V/60HZ/1PH* or 220V/60HZ/1PH (Optional)
*Must be wired to a circuit with 10-gage wire and a 30-amp breaker
Reasons to Buy the KT-4H850 from Katool
Includes the following items
(1) Caster Kit for moving the lift around
(2) Drip Trays
(1) Jack Tray
Variable Motor Mount Location
Motor column can be installed front or rear, at both sides.
CE Approved and Certified
This product has been assessed by the manufacturer and deemed to meet EU safety, health and environmental protection requirements
Locking System
Four mechanical locking devices, each with primary and secondary safety locks, provide a manual safety lock release mechanism.
Katool Warranty
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
