Ranger QuickJack Portable Truck Lift System

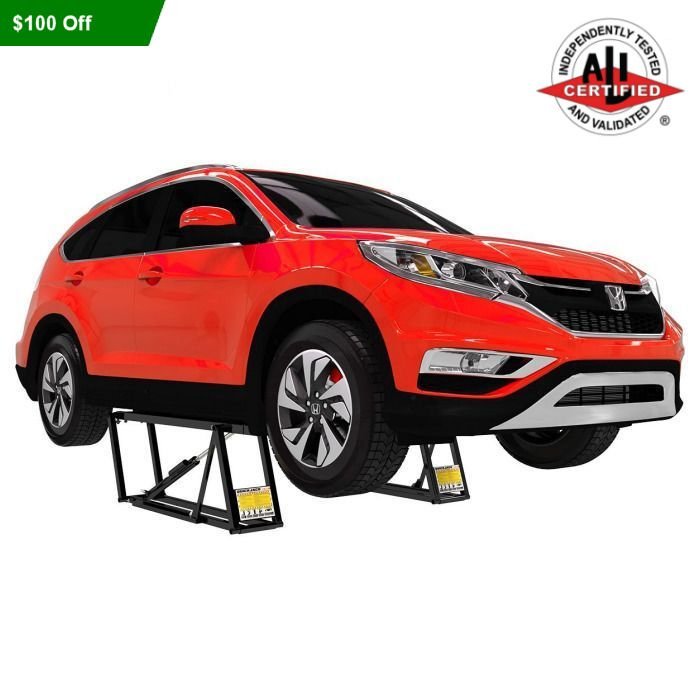

The QuickJack 7000TL Portable Truck Lift System is recommended for use with light trucks and SUVs. This heavy-duty, standard-length portable car lift is popular and versatile as the lighter-capacity 5000TL. If you have a truck or SUV, pair this model with the optional SUV/truck adapter kit to get the most lift possible. The 7000TL’s lowered height is only 1/2″ taller than the 5000TL, which means the 7000TL can lift virtually everything the lighter model can, plus a full extra ton. The frames are reinforced with box-welded steel – hence the 1/2″ of added height – to give it the extra umph it needs for heavy lifting.
Features

7,000 lbs. Capacity ALI Certified
From Stow To Go In Less Than 60 Seconds
Dual-Position Automatic Safety Lock Bars Engage Automatically As The Lift Rises
Dual Locking Positions – Mid Level And Full Rise
Extended, Cantilevered Rubber Block Trays Provide Increased Rubber Block Reach
Portable Power Unit Features A Remote Push-Button Control For Simple Operation
Steel Mounted UHMW Wheels Provide Effortless Rolling Of Jack Frames On Floor
Remote Pendant Control Features A 13-Foot Cord
Power Unit Features A Built-In Hydraulic Flow Divider For Precise Equalized Lifting
Open-Center Design For Clear Under Car Access
Quick-Connect/Disconnect Hoses For Fast And Convenient Set-Up
Convenient Handles Allow For Easy Positioning Of The Jack Frames
Strong 14-Gauge Welded Steel Frames
It’s A Jack You Can Use When You Need It Then Conveniently Store Out Of The Way
Provides Quick Wheels-Free Convenience For Brake And Tire Service And Clear Undercarriage Access Of All Types Of Vehicles
Low-Profile Jack Frames Fit Under Most Race Cars
Powerful Hydraulic Cylinders Eliminate The Need For Screw Mechanisms
Integrated Power-Assist Canisters Increase The Lowering Speed
Hydraulic Cylinders Feature Integrated Velocity-Fuse Safety Valves
A Convenient Metal Carrier With Handle Keeps The Power Unit Protected And Easily Mobile
Includes An Eight Piece Set Of Adjustable And Stackable Rubber Lift Blocks To Support Cars At Precise Locations For Increased Stability And Safety
Detailed Installation, Maintenance And Safety Instructions Accompany Each Quickjack System
Durable Powder Coat Finish

Note: This unit is configured with a 110V AC power unit.
Also Available 208-240V AC 50/60Hz
What’s Included

7000TL Left Frame Assembly
7000TL Right Frame Assembly
1x Hydraulic Power Unit With Control
4x Medium Rubber Lift Blocks (2″)
4x Tall Rubber Lift Blocks (3″)
2x Short Hydraulic Hoses
2x Long Hydraulic Hoses
2x Frame-Positioning Handles
Fittings And Thread Tape For Setup
Instruction Manual

Requirements

(3) Liters Of Automatic Transmission Fluid
Air Source To Inflate Air Cylinders Up To 50 PSI
Assembly Tools


Specifications

Model Number
3500SLX
5000TL
5000TLX
7000TL
7000TLX
6000ELX

Lifting Capacity
3,500 lbs.
5,000 lbs.
5,000 lbs.
7,000 lbs.
7,000 lbs.
6,000 lbs.

A – Lowered Height (Frame Only)
3″
3″
3″
3.5″
3.5″
3.5″

B – Lowered Height (with 2″ Block)
3.5″
3.5″
3.5″
3.75″
3.75″
3.75″

D – Lifting Height (with 2″ Block)
17.5″
21″
21″
21.5″
21.5″
21.5″

E – Lifting Height (with 3″ Block)
18.5″
18.5″
22″
22″
22.5″
22.5″

F – Max. Height
21″
24″
24″
24.5″
24.5″
24.5″

G – Lifting Height (with Adapters)
N/A
24″
24″
24.25″
24.25″
24.25″

G – Lifting Height (with Adapters + Pin)
N/A
26.75″
26.75″
27″
27″
27″

I – Lift Point Spread (Max)
50.5″
60″
66″
60″
66″
76″

J – Lift Point Spread (Min)
27″
37″
43″
37″
43″
53″

K – Frame Width
10.5″
11″
11″
12.5″
12.5″
12.5″

L – Frame Length
62.5″
70″
76″
70.75″
76″
86.75″

Frame Weight
60 lbs.
78 lbs.
81.5 lbs.
98 lbs.
103 lbs.
112 lbs.

Time To Full Rise
30 seconds
30 seconds
30 seconds
30 seconds
30 seconds
30 seconds

Power Unit Weight
15 lbs.
15 lbs.
15 lbs.
15 lbs.
15 lbs.
15 lbs.

Total Shipping Weight
180 lbs.
240 lbs.
250 lbs.
280 lbs.
304 lbs.
318 lbs.



Warranty: (1) Year Limited
