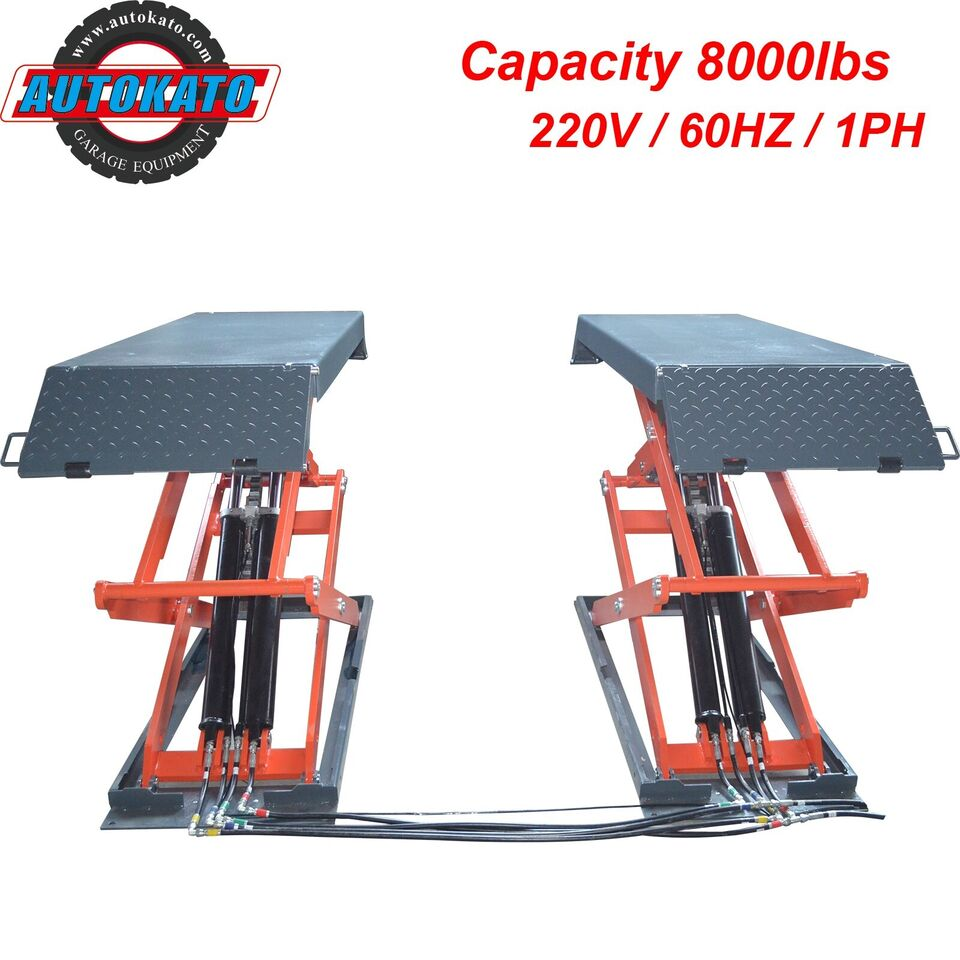

Stratus Commercial Grade On-Ground or In-Ground Mount Low Profile Full Rise Scissor Car Lift

Original price was: 240,00 €.Current price is: 160,00 €.

SKU: asdxas32 Category: Vehicle Lifts

Description

This low-profile double scissor lift comes with On-Ground surface mount or In-Ground flush mount design, it is pneumatic safety lock release with overload protection, easy to operate and maintain. Full size scissor car lift is suitable to hold 10,000 lbs. or less, ideally for inspection, repair and maintenance of various types of vehicles.
Product Features

Commercial grade open center full rise low profile scissor lift
2 in 1 design – On-Ground surface mount or In-ground flush mount (see detailed foundation plan)
Pneumatic safety lock release
Durable cylinders with anti-surge valves
Overload protection
Alloy solid steel X structure, good rust resistance and not easy to deform
Ramp can be used as platform extension suitable for different length of chassis
Wear-resisting bearings
9 lock position, each lock position is 2 1/8″ (55mm) apart.
8 pcs rubber pads included, 4 of each 1 1/2″ & 4″
Low profile design, minimum height is only 4 5/16″
24V low voltage control system
Platforms can be extended for long vehicles
Self-lubricated bushing and bearing
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

Product Specifications

Model
UT10000

Capacity
10,000

Lifting Time
~90SEC

Max Height
72 1/16” (1830 MM)

Min Height
4 5/16” (110 MM)

Runway Length without Ramps
60 1/4” (1530 MM)

Runway Length with Ramps
84 1/4” (2140 MM)

Overall Width
85 13/16” (2180 MM)

Runway Width
26 3/16” (665 MM)

Between Runway
33 7/16” (850 MM)

Motor
4 HP, 220V, 60 HZ, 1ph
