TP9KSCX, 9,000 lb 2 Post Car Lift Clear Floor – Symmetric

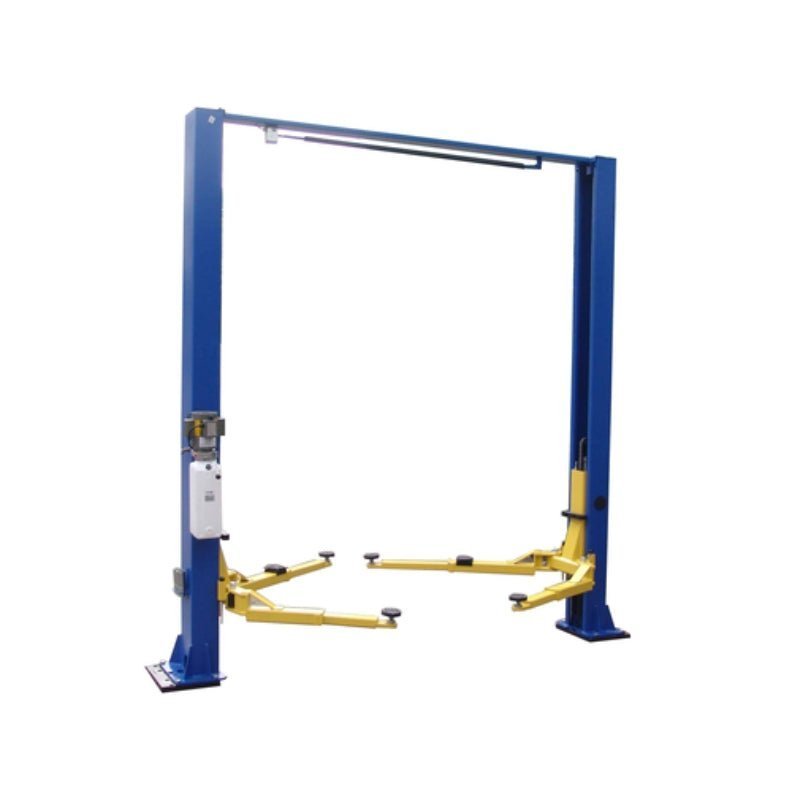

Tuxedo TP9KSCX 2 Post Car Lift

Revolutionize your garage with the Tuxedo TP9KSCX Asymmetric Two-Post Lift. Designed to streamline your workflow, this lift offers unparalleled convenience and efficiency. Its asymmetric arms provide exceptional access to your vehicle’s interior, making maintenance and repairs a breeze. With a robust 9,000 lb capacity, you can confidently lift a wide range of vehicles, from compact hatchbacks to full-size SUVs. The lift’s single piece column ensures stability and durability, while features like rubber door guards and internal hose routing protect your vehicle and maintain a clean workspace.

The dual point lock release system and the automatic arm restraint system work together to ensure a secure and stable lift, every single time. Speaking of heavy loads, the chain drive cylinders on this lift are utilitarian, delivering smooth and reliable lifting. The low-profile spin-up lift pads on this lift can handle a wide range of vehicle types, including those with low ground clearance. Invest in a tool that will elevate your automotive endeavors and save you time and effort.

TP9KSCX Lift Specifications:
Capacity: 9,000 lbs

Overall Height: 142-7/8″

Overall Width with Power Unit: 138″

Maximum Lift Height: 72″

Width Between Columns: 113-5/8″

Minimum Pad Height: 4″

Drive-Thru Clearance: 96″

Lifting Speed: 50 seconds

Asymmetric/Symmetric: Symmetric

Clear Floor/Floor Plate: Clear Floor

Short Arm Reach (min/max): 31″ – 45″

Long Arm Reach (min/max): 31″ – 45″

Narrow Bay Setting: Not Applicable

Cable Thickness: 3/8″

Maximum Load Per Arm: 2,250 lbs

Shipping Weight: 1,370 lbs

Power Requirements: 220V, 20 AMP, Single Phase

Pallet Dimensions: 148″ x 18″ x 42″
TP9KSC X, 9,000 lb 2 Post Car Lift Special Features:
9,000 lbs capacity

Symmetric Arms

Rubber Door Guards

Chain Drive Cylinders

Dual Point Lock Release

Auto Arm Restraint System

Single Piece Column

Internal Hose routing

Low profile Spin Up Lift Pads

Stackable Adapters Included

Warranty: 5 Years Structure, 1 Year Parts – Under Normal Use
