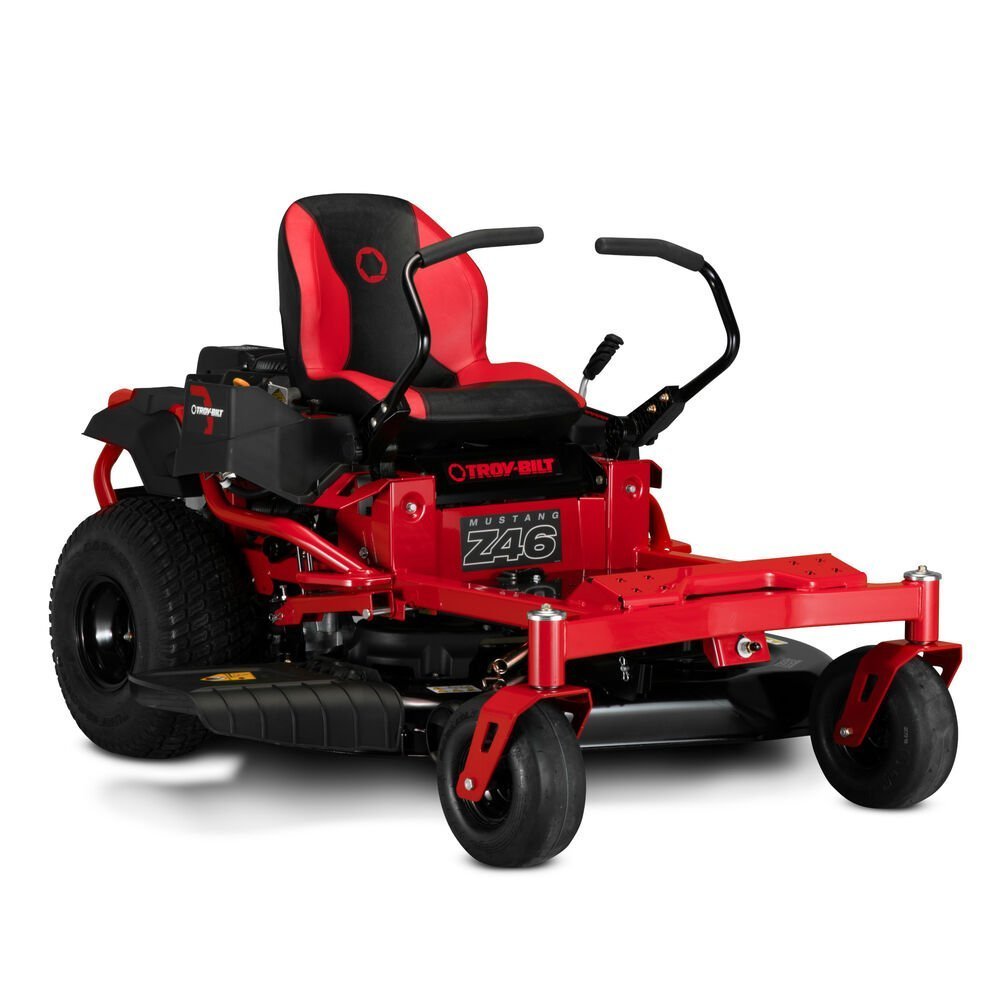

Get the job done fast with the Troy-Bilt® Mustang™ Z46, designed to quickly turn at the end of a row and mow around trees and landscape beds with dual hydrostatic transmissions. The rugged steel frame is engineered to absorb impact, provide stability, and is covered by a limited lifetime warranty. Quickly engage the cutting blades with the electric PTO and ride comfortably with the adjustable high-back seat and foam grip steering controls. A KOHLER® engine provides the power for your lawn care needs
Powerful 22 HP*/747cc KOHLER® twin-cylinder engine designed to deliver quiet, balanced performance
Full-length, fully welded, 2″ tubular steel frame is designed to absorb impact, provide stability and is covered by a limited lifetime warranty
Dual hydrostatic transmissions deliver true zero-turn performance and are designed to help quickly cut and maneuver around obstacles while mowing
46″ twin blade cutting deck with two anti-scalp deck wheels helps prevent turf damage and is engineered to deliver a clean, even cut.
Engine
Engine BrandKohler®
Engine Model7000 Series
Engine Model NumberKT722
Engine Displacement747cc
Engine Output22HP
Starter TypeElectric
Fuel Tank Capacity3.5 gallons (13.25 Litres)
CylindersTwin
Engine StartIgnition Key
Engine Oil Capacity2.0 qts. US (1.89 L)
LubricationFully pressurized
Charging System12 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeChoke-a-matic
Air FilterDual element
Oil FilterYes
Fuel DeliveryCarburetor
Battery
Battery210 CCA
Battery TypeAGM (Absorbent Glass Mat)
Battery Voltage12V
Drive System
TransmissionHydro-Gear™ EZT-2200
Forward Speed7 MPH / 11.3 Km/H
Reverse Speed3.5 MPH / 5.6 Km/H
Drive SystemHydrostatic
Transmission HousingCast aluminum
Cutting Deck
Deck Cutting Width46 in
Deck WashYes
Deck Material12-gauge steel
Deck Engagement (PTO)Electric
Deck ConstructionStamped
Blade(s)2
Deck LiftFoot pedal
Cutting Height Range1.25″-3.75″
Anti-Scalping2 gauge wheels
Deck Positions8
Chassis
Frame2” x 2” tubular steel
Turning Radius0°
ROPSNo
Rear Tow HitchYes
Corrosion ProtectionYes
Controls
Cruise ControlNo
BrakesDisc
Steering ControlLap Bars
Comfort
Seat Type18″ high back
ArmrestsNo
Seat AdjustmentKnob
Wheels
Rear Tires20”x8-8”
Front Tires11”x6”-5”
Tire TreadTurf Master / Multi Trac
Additional Specifications
Hour MeterAvailable separately
Mulch KitAvailable separately
Headlight(s)No
Cup HolderYes
Operator Presence SystemYes
Parking BrakeLap Bar Integrated
Model Number17ARFACTA66
Warranty
Residential Warranty3-year limited
Frame WarrantyLifetime Limited
Deck Shell Warranty3-year limited
Commercial WarrantyNo
