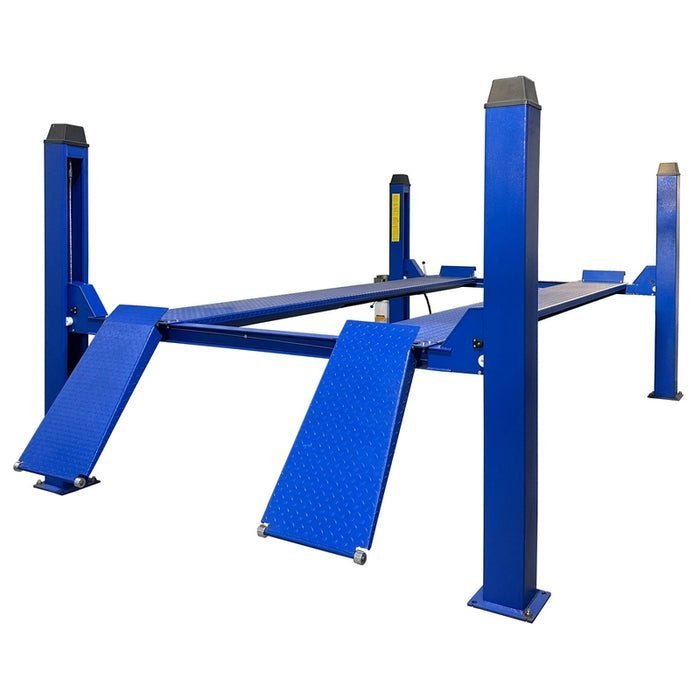

Tuxedo FP12K-K 12,000 lb Four Post Lift – Cable Driven

Tuxedo 12,000 lb Four Post Lift – Cable Driven

–
*Jack sold separately

Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.
Features

–
12,000 lbs Capacity

Cable Driven

176 max wheelbase

Single Point Manual Lock Release

Adjustable Locking Positions

Slack Cable Safety

No Overhead Obstructions

Powder Coat Finish
Specifications

–
Lift Model

FP12K-K
Capacity

12,000 lbs.
Overall Length w/Ramp

232-1/2″
Overall Width(Without Power Unit)

123″
Overall Width (With Power Unit)

134″
Overall Height

84″
Max Rise Height

67-1/2″
Min Height

7″
Width Between Posts

105″
Length Between Posts

177″
Width Between Runways

36-1/2″
Width Of Runways

19″
Max Wheelbase

167″
Ramp Length

35″
Max. Clearance Under Runway

63-1/4″
Drive-Thru Clearance

87-1/2″
Base Plate

11″ X 11″
Power Requirement

220V – 20 Amp – 1PH
Ship Weight

2,255 lbs.
Min Bay Size

15″ x 23″
